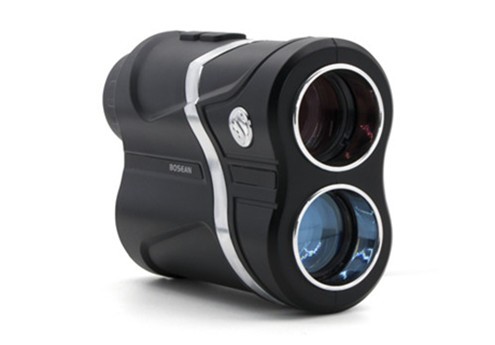

M-VH Series(Golf)

The Bosean M-VH series laser rangfinder has functions such as ranging, height/speed/angle/distance measurement, ±1yard Accuracy, Fast Flagpole Lock, 7X Magnification.



$49-$99

If you need the exact price, please leave message.



Send E-mailGet Price

PRODUCT INTRODUCTION

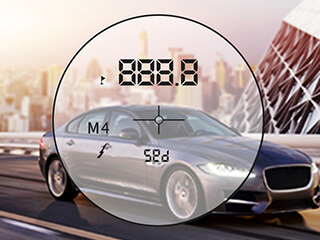

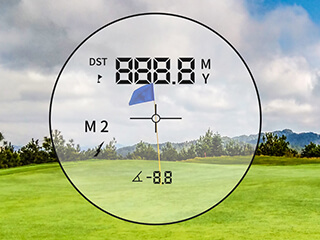

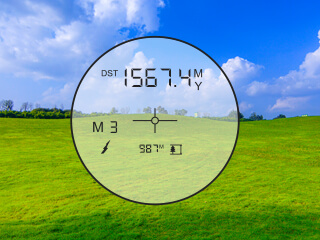

1. 4 Modes Function & Flag-Lock : Normal Distance, Speed, angle, height, Flag-Lock, with Continuous Scan mode.
2. Lithium battery Rechargeable, High-definition camera, 7X Magnification, 7 degree field angle, with pin seeker, Class 1, 905nm laser type.
3. Clear vision, fine data display, excellent experience. Superior capturing function of small objects, especially suitable for golf club locking.
4. Eye-safe laser band, long-term use will not hurt your eyes.
5. USB charging mode, avoid the trouble of buying batteries.
Note: Various functions can be customized, for example, Bluetooth, vibration. If you need, contact us!

  • golf rangefinder,hunting rangefinder,laser distance meter,rangefinder oemdistance
  • golf rangefinder,hunting rangefinder,laser distance meter,rangefinder oemflag-lock
  • golf rangefinder,hunting rangefinder,laser distance meter,rangefinder oemheight
  • golf rangefinder,hunting rangefinder,laser distance meter,rangefinder oemspeed

Technical Data

Item Spec Item Spec
Product type M-VH-600 M-VH-1000 M-VH-1500 Measurement range 600m 1000m 1500m
Power Lithium battery Rechargeable Unit Y/M
Distance MeasureAccuracy ＜300M.accuracy ± 0.5M;＞300M accuracy 1M Angle MeasuringRange -90°-90°
Angle Measure Accuracy ±1° Measurement Speed Range 10-300KM/H
Measurement Speed Accuracy 5KM/H Laser Type 905 nm
Vision Security FDA(Class 1) Field Angle 7°
Magnification 6x Objective Lens 24mm
Eyepiece Lens 16mm Exit Pupil Diameter 3.8mm
Dioptre adjustment ±3 Focus Way Eyepiece Focus
Height measurement function Yes Scan Mode/Function Yes
Display LCD Water Resistant Class II

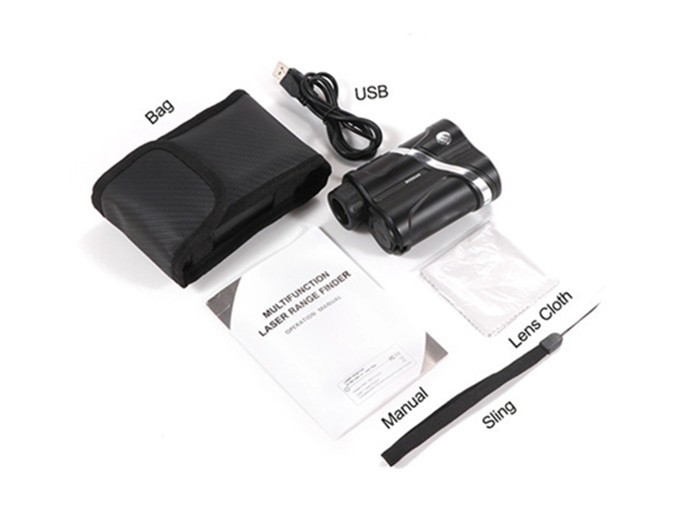

Size 43*105*75mm Packing List
1* laser Rangefinder, 1* Durable Carrying Case,
1* Lithium battery Rechargeable,
1* English User Manual,
1* Wrist Strap,1* Lens Cloth,1* Certificate

Note: Various functions can be customized, for example, Bluetooth, vibration. If you need, contact us!

USING CONDITIONS

Objects with different reflectivity has a big influence on the measuring result, please check the following measuring guidance :

1.Objects like building walls are moderate reflectivity.
2.Direction of laser emission should be vertical with the reflective objects’ surface.
3.Use in sunny days, but avoid to using under direct sunlight.
4.The area of the reflector should not less than 2mx2m.

Different conditions above may cause different measuring results. We can not guarantee the rangefinder work normally under the following conditions :

1. Against to the sky, or use directly under the sunlight.
2. Use in rainy, foggy, snowy, or hazy days.
3. Target at objects which can hardly create reflection, such as electric wire, water surface, etc.

BATTERY INSTRUCTIONS

Battery should be two pieces AAA1.5V or CR2-3V.
Lithium battery status description: Full power.
Low power, exchange new battery soon.
No power, exchange new battery immediately.

Battery’s life span :

Operating continuously for 5000 times(more or less at about 20℃). The figure may change under different use conditions, such as different reflectivity of the measuring objects, or in different temperatures.
