Laser Rangefinder Module(Golf)
905nm single pulse 1HZ laser range finder module TTL RS232 600m/1000m/1500m.
As a rangefinder manufacturer, we support OEM/ODM/R&D service.
$49-$99
If you need the exact price, please leave message.
PRODUCT INTRODUCTION

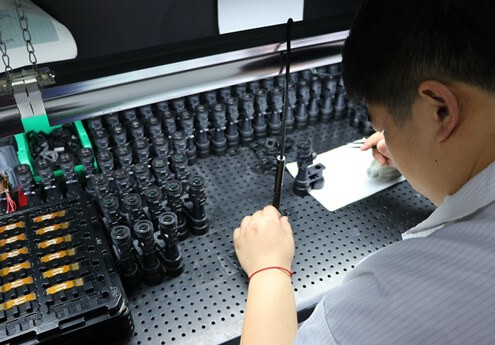

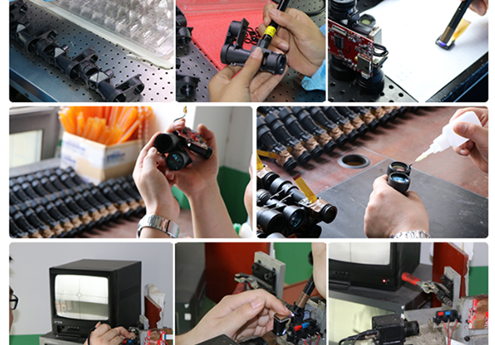

At an operational wavelength of 905nm the measurement range is 5 to 1500m with an measurement accuracy of +/-0.5m. The special processing electronics enable the Laser Rangefinder a maximum range capability within eye-safety class 1. The production flow invoved by sequence are producing semiconductor circuit board, uploading software onto the board, cleaning eyepiece, assembling the prism for the eyepiece, checking the good condition of the internal LCD, ratifying the emission and reception lens, testing the correctness of ranging to finally assembling to a whole piece.Every process is closely checked to make sure our product defect free.
Technical Data
| Power |
AAA battery/CR2-3V battery/Lithium battery Rechargeable (Customizable) |
Unit | Y/M | ||||
| Distance MeasureAccuracy | ＜300M.accuracy ± 0.5M;＞300M accuracy 1M | Angle MeasuringRange | -90°-90° | ||||
| Angle Measure Accuracy | ±1° | Measurement Speed Range | 10-300KM/H | ||||
| Measurement Speed Accuracy | 5KM/H | Laser Type | 905 nm | ||||
| Vision Security | FDA(Class 1) | Field Angle | 7° | ||||
| Magnification | 7x | Objective Lens | 24mm | ||||
| Eyepiece Lens | 16mm | Exit Pupil Diameter | 3.8mm | ||||
| Dioptre adiustment | ±3 | Focus Way | Eyepiece Focus | ||||
| measurement function |
height, angle, slope, speed, flog-lock, scan (All functions can be customized) |
Size |
129*78*40mm, 125*77*45mm (Customizable) |
||||
| Display | LCD | Water Resistant | Class II | ||||
Note: If you need to customize some functions, please contact us, we provide OEM/ODM/R&D services.
